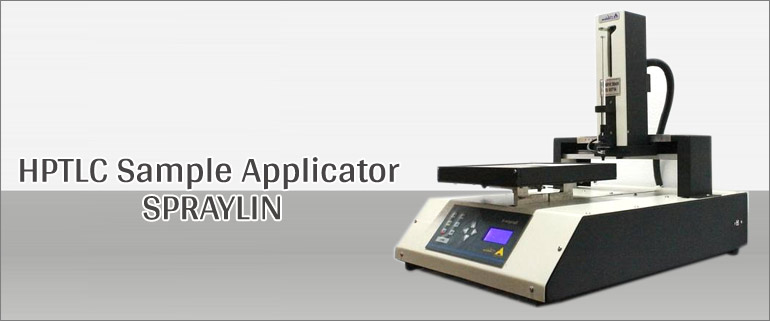

HPTLC Sample Applicator – SPRAYLIN
Plate Size: - 20 cm X 20 cm.
Sample Syringes –25 μl , 100 μl ,500μl.
Aluminum plates , Glass plates or Lab made plates.
Spray on application.
Application Spot or bands
Automatic syringe height adjustments for different types of plates.
N2 spray gas with 1-1.5 lit/min gas consumption.
Easy software selection of Delivery speed of the sample.
Band Length 1mm-190 mm in step 0.1mm
Memory : 25 Methods , backup min 10 years
Fixed operating methods No. 25, with default factory settings are provided these methods can be
overwritten as per customer’s requirements.
CPU of machine automatically CALCULATES the No of Bands
Automatic applied with given Plate size, Start distance, Space & Band length.
Facility to Superimpose Selected tracks.
In Built Diagnostics Modular design.
Pneumatic module with gas pressure indicator.
Easy to service & affordable spares.
Last executed method is stored in volatile memory and it can be open & executed by just pressing
FN + PRV
In Personal Computer operating mode SPRAYLIN is controlled by Personal Computer through
SPRAYLIN software & Display shows “ PC Control”
In Manual Mode or Machine Mode method is executed by opening any one method out of 25 inbuilt
methods stored in SPRAYLIN machine memory.
Graphical alpha numeric displays the current status of the machine
