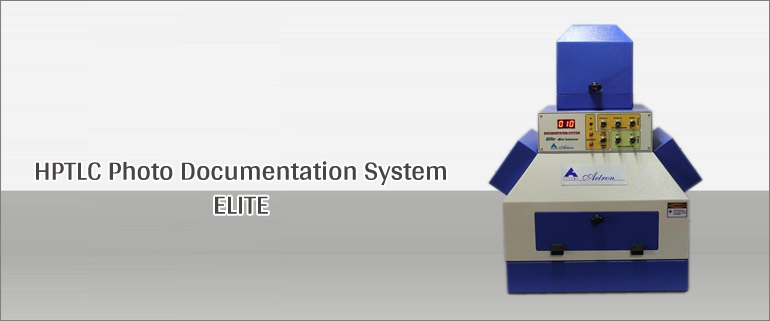

HPTLC

Lamp Source: Flicker less illumination > 50 khz.

Illumination:

Digital keyboard panel

Top illumination

Visible: 16 x 1 LED Light Source

UV 254nm : 4 x 6W (2 from each side)

UV 365 nm : 2 x 6W (1 from each side)

Bottom Illumination:

TRANS ILLUMINATOR – 5 X 6 W Visible Light Sources are in built.

Lamp Filters:

Separate Filter on either side

Imported filters are fixed in front & UV light

Sources on either side to ensure proper incident wavelength & to cut off unwanted harmonics.

Camera:
Canon High Resolution Digital SLR (DSLR) Camera, 24.1 Megapixel , Full HD ,USB 3.0 Connectivity or Equivalent.

Electrical:
Mains voltage 230VAC 50Hz + / -10%

Humidit/Temperature:
80% Rh / 30 deg. centigrade

Camera Filters
UV blocking filter is provided with unit. filters of 60nm diameter can be provided to put in front of camera lens.This gives an additional facility for enhancing images if required under different color filters.

SOFTWARE:

Auto calculation of Retention

Factor (RF)

Annotation Facility

Audit trial & log book included

Inbuilt validation

IQ/OQ included

Secured data base storage.

21 part CFR 11 compliance
