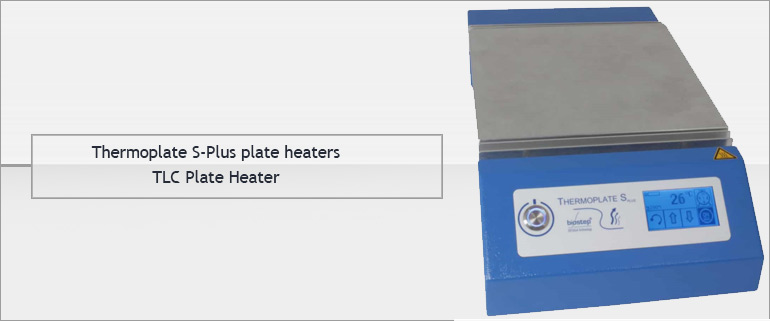

Thermoplate S-Plus plate heaters

With this device it is possible to obtain a uniform heating temperature over the entire surface of the plate.The temperature range is between 25 and 199°C.A thermostat maintains the displayed temperature at +/- 0.5°.The rise in temperature is of the order of 3 minutes to obtain 150°C. 220V 60Hz.

New features -:

Transition from green to red in the event of an increase in temperature

Timer function with acoustic signal

Program control with backup of up to 9 programs

TLC Plate Heater

The Thermoplate S plus is an electronically controlled hotplate for detection reactions in TLC/HPTLC and for precise heating and drying operations in the laboratory.
The set nominal temperature is held constantly within 2K. The operating range is between 25 and 200 °C. The lowest possible controlled temperature is 10 K above ambient temperature. The unit operates with a platinum resistance thermometer. Temperature readout is made on a coloured touchscreen which changes from green or blue to red at increasing temperatures. This means the user can visually see if it is safe to touch the plate or not. An accustic signal informs the user as soon as a defined time or requested temperature is reached. Furthermore, up to 9 programs can be saved. The heating surface is made of high conductivity aluminium that - together with the ultralarge area of the heating element - ensures a uniform temperature distribution.

Unique features: -

Changing colours from green to red at increasing temperatures

Timer function with acustic signal

Program control with saving up to 9 programs

Technical Data: -

Temperature range: 25 – 200 °C

Heating area: 240 x 240 mm

Heating rate (at 50 °C): 10 K/min

Fluctuation range of temperature: 2 K
