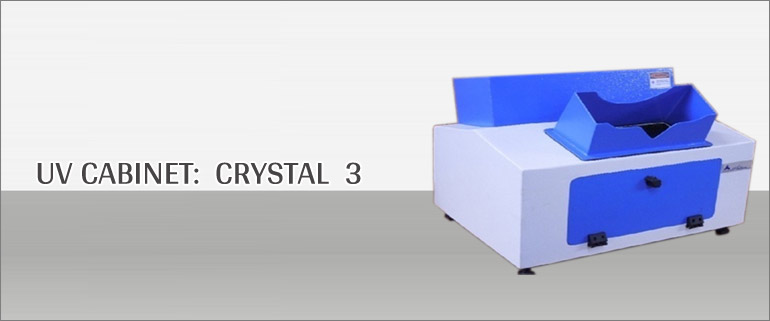

HPTLC

Lamp Source:Imported lamp sources from reputed manufacturer.

Illumination 3 Lamp Sources are used

One UV tube 254 nm ShortWave

One UV Tube 365nm Long Wave

One Visible LED Light Source

Portable Light Source (Optional)

Hand Held Light Source to Observe sample outside the cabinet.

Flicker less, Illumination, Instant Glow in, Total Dark Room.

Total Dark Room to observe faintest spots

No light comes out of the cabinet, total safety for operator

Lamp Filters (165 x 55x 4 mm)

Imported Filters are used in front of lamp sources to block unwanted

harmonic wavelengths & only TRUE UV will be incident on objects.

Traceability certification on demand.

Controls : Separate control through toggle switches for each lamp. Timer By- Pass switch. Start / Stop, set keys for timer.

Timer : Micro controller based Provision to select timing either in second, minutes, and hours. Range 1 to 99, with START / STOP, SET Keys Three digit digital display. ON delay

Electrical : Mains voltage 230VAC 50Hz +/-10%.

Humidity/ Temperature,Dimension metal body, Epoxy Powdered Coated , Front Door,Loading + UV protected Viewing Cabinet,58% Rh / 30deg.centigrade.,Metal Cabinet Size 290 X 420 X 290mm
