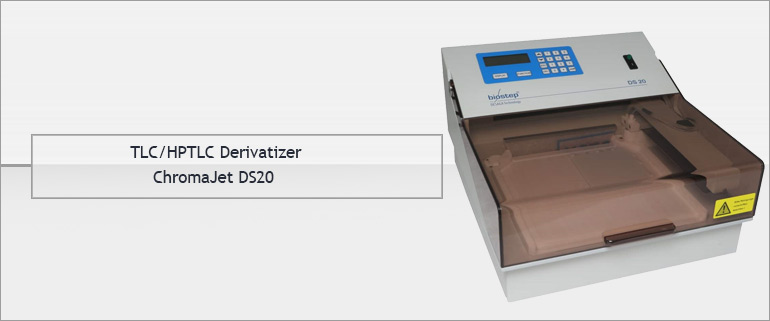

ChromaJet DS20
The ChromaJet DS20 presents a completely new derivatization concept. Reagents are sprayed on thinlayer plates or foils with the highest precision under microprocessor or computer control. The distinction from manual spraying lies in the great reduction in the quantity of reagent required, the almost complete absence of aerosol formation and the evenness of the spray pattern. It is possible to create and store up to 4 spray methods specifically adapted to individual chromatography schemes and call them up as required. The integrated software works under Windows 10. The individual working steps of the spraying procedure, including date and running number, are stored with the spray method. That permits operation in conformity with GxP for the first time in the field of documentation, as a result of the exact reproducibility and documentation. The spray methods define all important parameters, such as spray rate, volume to be sprayed and reagent selected. The free selection of X-Y coordinate direction means that it is possible to spray evenly, either individual tracks or areas of any size up to 200 x 200 mm. The integrated reagent changer selects from 4 possible reservoirs of the desired spray medium depending on the spray program. An integrated rinsing process stops any carry-over. The transparent protective cover permits close inspection during the spray process and prevents the escape of aerosols. Excess spray mists are evacuated continuously and lead, for instance, into a fume cupboard, via an optional exhaust hose. The spray protocol includes all individual parameters of the spray program and is issued completely with date, time, user name, a plate designation assigned to the chromatogram and any comments that might have been entered.
Technical Data Derivatisation area: 200 x 200 mm, Power supply: 100 - 240 V, 50 – 60 Hz, 500 W,
Dimensions (W x H x D): 470 x 400 x 225 mm,
Weight: 15 kg
