TLC/HPTLC Photo documentation

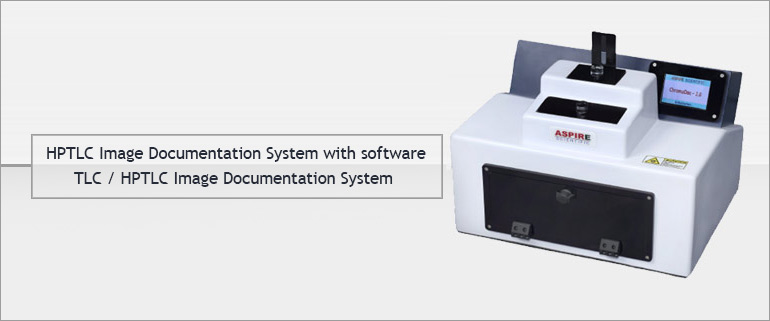

TLC / HPTLC Image Documentation System.
ChromaDoc 2.0 – Photo documentation - Touch Screen

Touch Screen Display, Lamp Source: Imported lamp sources from reputed manufacturer. Illumination 3 Lamp Sources are Used

Visible: White lamp 1 No.
UV 254 nm Short Wave 1 No.
UV 365nm Long Wave 1 No. UV Filter

Photo documentation with UV cabinet with Digital Camera (Quantity 1)

Touch Screen Display, Total darkroom and 3 Lamp Sources are essential. UV 254 nm, 366 nm and Visible light source. Flicker less Illumination with timer switch and; start/stop key and set key voltage 230VAC 50Hz +/-10%. Two mode system, Manual Mode & Auto Mode, Auto Timer Range 00 Sec to 99 Hrs. High Tech 50kHz Power supply for flicker less, instant illumination.

Digital Camera :

Perfect for any occasion, the camera captures images with a 20.2megapixel CMOS sensor, resulting in high-resolution photos that can be shared effortlessly via Wi-Fi and NFC. With the aid of Canon’s Zoom Plus technology, the zoom range can be doubled to 24x without any noticeable loss in quality.

Automatic HPTLC Software

Perform Qualitative & Quantitative analysis on TLC plates in minutes.

Automatically detect and truly compare chromatograms in three dimensions.

Automatic Spot quantification

Automatic Band quantification

Compare data from spots and plates

Group and average plates for increased statistical reliability

Display graphs and store TLC plates in projects

Exports data into Excel or other third-party software for further custom analysis

Plate comparison, cross comparison,Image Enhancement

Print graphs, plates and data sheet

Compliance with USP 203

IQ-OQ, In-Built FDA 21 CFR Part 11 & Electronic signature.
